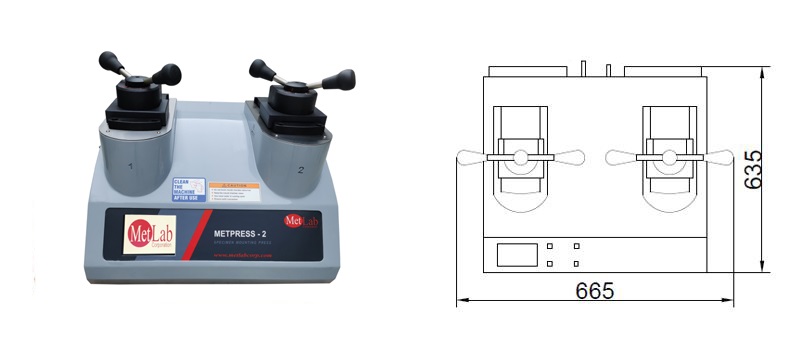

METPRESS-2 AUTOMATIC MOUNTING PRESS WITH DUAL CYLINDERS

Brand：	USA/MetLab
Description：	METPRES series of fully automatic mounting press suitable for the production of numerous samples. They operate on electro hydraulic pressure. (requires no air line). HMI LCD display with user friendly touch screen control.

Information

METPRESS-2 Automatic Mounting Press With Dual Cylinders Performances
● METPRESS-2 is a fully automatic hydraulic hot mounting press with double cylinders suitable for higher volume throughput.
● Individual cylinder operating system.
● The diameters of the two cylinders can be different.
● Each cylinder can be option twin mounting with the intermediate spacer ram.
● Electronic hydraulic pressure (no airline required).
● Fast sample mounting, uniform molding size and enhanced results like high mould hardness and edge retention.
● LCD HMI display with user friendly touch screen controls.
● Pre-set programming and data storage of mounting parameters, very suitable for repeat sample preparation. Can set pre-heating upon startup.
● The unique feature is that the screen displays the current temperature and pressure in real time, so that the mounting process can be understood at a glance.
● Full range of mould sizes.
● Automatic water cooling system. Fast, medium and slow cooling mechanism can be selected.
● Reminder function when cooling is not sufficient and needs to continue cooling.
● Cycle completion alarm notification.

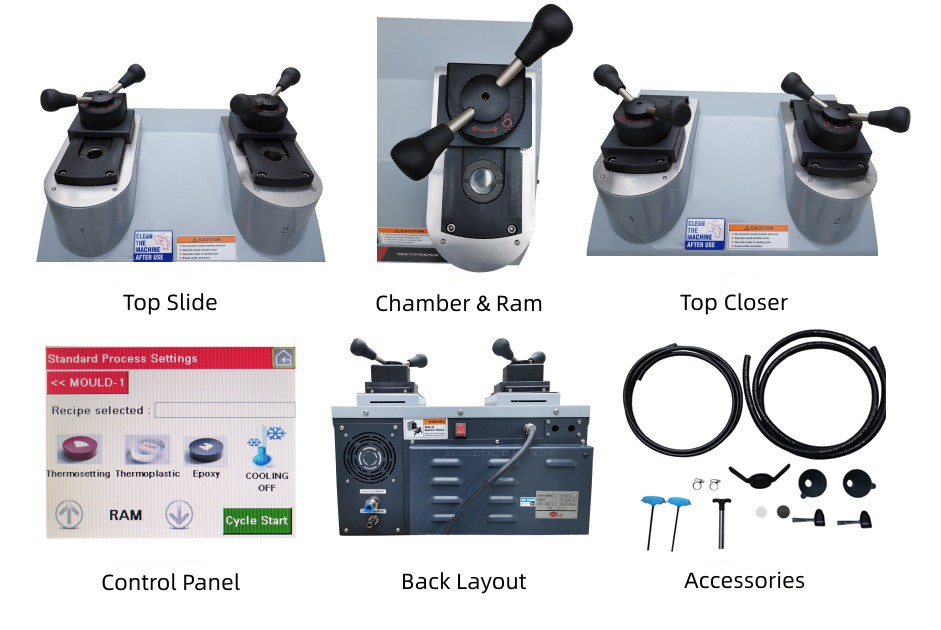

● Push and pull the top slide to open and close the chamber, effortless and convenient.
● Top closer locking the chamber, easy to operate and improve safety level.
● Corrosion resistant steel construction, safe and durable.

METPRESS-2 Automatic Mounting Press With Dual Cylinders Technical Parameters
Mounting SampleCount		Up To 4
Heating Power		1.5kW
Pre-Heating		50-90℃, Adjusting Range 1℃
Heating Temperature		100-200℃, Adjusting Range 1℃
Heating Time		1-20min
Pressure System		Electronic Hydraulic Pressure (No Airline Required)
Pressure		50-350bars, Adjusting Range 1bar
Mould Diameters		1in, 1.25in, 1.5in, 2in, 25mm, 30mm, 40mm, 50mm
Cooling Modes		Automatic Water Cooling, Fast, Medium And Slow Cooling Mechanism
Cooling Time		1-20min
Water Inlet Pipe Diameter		12mm（OD.）
WaterOutlet Pipe Diameter		8mm（ID.）
Main		220V, 1 Phase, 50Hz
Screen		LCD Touch Screen
Size (W×D×H)		577×557×505mm
Weight		110kg

METPRESS-2 Automatic Mounting Press With Dual Cylinders Ordering Informations
Part Number		Description
25 01-2		Automatic Mounting Press With Dual Cylinders METPRESS-2
25 01-M1		Mould Dia. 1in
25 01-M125		Mould Dia. 1.25in
25 01-M150		Mould Dia. 1.5in
26 01-M2		Mould Dia. 2in
25 01-M25		Mould Dia. 25mm
25 01-M30		Mould Dia. 30mm
25 01-M40		Mould Dia. 40mm
25 01-M50		Mould Dia. 50mm
