METCUT-8 HIGH SPEED AUTOMATIC PRECISION CUTTER

Brand：	USA/MetLab
Description：	The high speed recision saw for cutting all types of materials with variable spindle speed. Automated Y movement adds to the convenience. A must for slicing surface engineered components. Most preferred by Research Laboratories.

Information

METCUT-8 High Speed Automatic Precision Cutter Performances
● METCUT-8 is an economical and practical automatic precision cutting machine. Sectioning wheel diameter 3in-8in.
● Unique eave type operation panel, concise and convenient.
● Inteligent feed control for over load of the sample.
● Quick positioning rapid movement with joystick facility.
● Wide range of variable speed to suit a wide variety of needs.
● Sliding door system with two sides opening, saving space.
● The right door can be fully opened for various operations.
● A 60 degree tempered glass window allows a clear view of the cutting chamber.
● LED lamp ensures a clear, bright cutting chamber.
● Large movable cutting T-slot table with anti-corrosion and spacious space.
● A variety of vises to fix the different shape specimens.
● Variable feed rates and cutting length.
● Doors safety interlocking devices.
● The emergency switch is eye-catching and convenient for operating.
● Two cutting coolant jets.
● Built-in 9L recirculation coolant tank.
● External cleaning nozzle for easy wash down.
● Epoxy coated chamber for easy clean-up.
● Rust proof steel construction to meet a variety of working conditions.
● A must equipment for cutting all types of materials.

METCUT-8 High Speed Automatic Precision Cutter Technical Parameters
Main	220V, 1 Phase, 50Hz
Motor Power	2Hp(1.5kW)
Cutting Capacity	Φ70mm, Rectangular L×W×H=150×50×50mm, Square L×W=50×50mm
Wheel Diameter	3in-8in(76mm-203mm)
Arbor Diameter	0.5in(12.7mm)
Wheel Speed	Variable Speed 100-5000rpm/min
Operation Modes	Y-axis Automatic Cutting Action Movement (Longitudinal), Travel Up To 250mm, Feed Rate 0.01-5mm/sec
	X-axis Manual Position Movement (Horizontal), Travel Up To 50mm, Automatic Movement (Optional)
	Z-axis Electric Height Adjustment To Compensate For Wheel Wearing (Vertical), Travel Up To 40mm
Automatic Cut-Off Type	Inteligent Feed Rates Control For Pulse Cutting
T-Slot Size	12mm
T-Slot Table Size (W×D)	200×200mm
Cutting Chamber Size (W×D×H)	380×630×380mm
Coolant Unit	9L Built-in Recirculating Coolant Tank
Light	LED Lamp
Screen	Color Graphical Touch Screen
Size (W×D×H)	833×838×813mm
Weight	181kg

METCUT-8 High Speed Automatic Precision Cutter Ordering Informations
Part Number	Description
50 08	High Speed Automatic Precision Cutter METCUT-8
50 02-LV	Quick Acting Vise, Left, Max. Opening 84mm
50 02-RV	Quick Acting Vise, Right, Max. Opening 84mm
15 01	MB 1011 Quick Clamping Device With Clamping Shoe, Max. Clamping Height 90mm

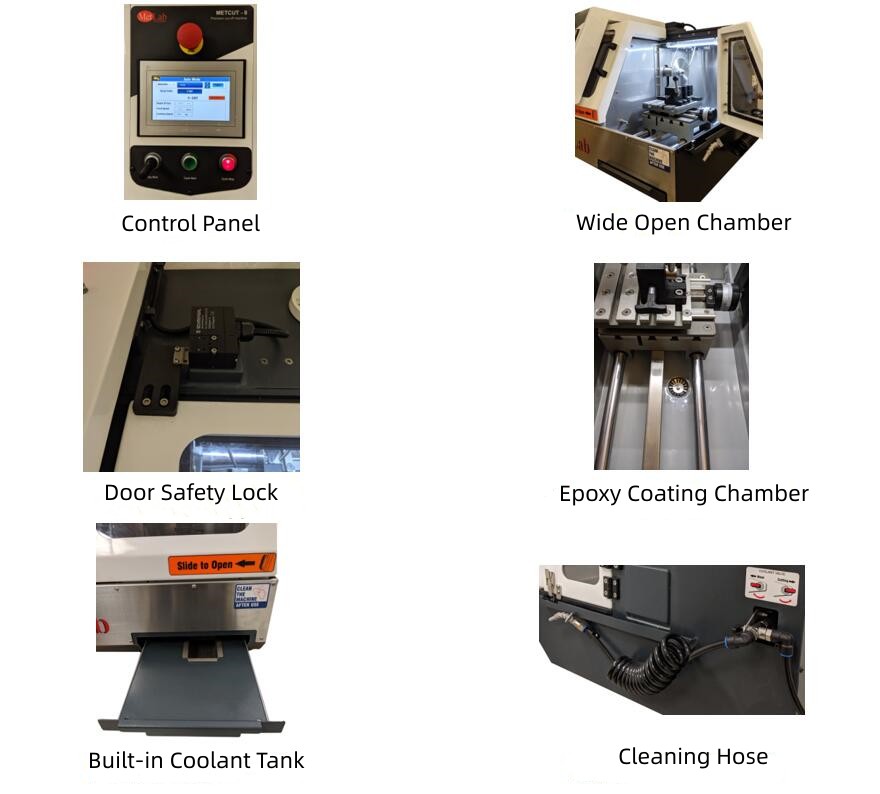

METCUT-8 自动精密切割机.jpg
