METCUT-12 FLOOR-STANDING MANUAL ABRASIVE CUTTER

Brand：	USA/MetLab
Description：	METCUT-12 series of abrasive cutting machines provide powerful cutting capacity to your large metallographic sample preparation needs. Manual model offers more economical.

Information

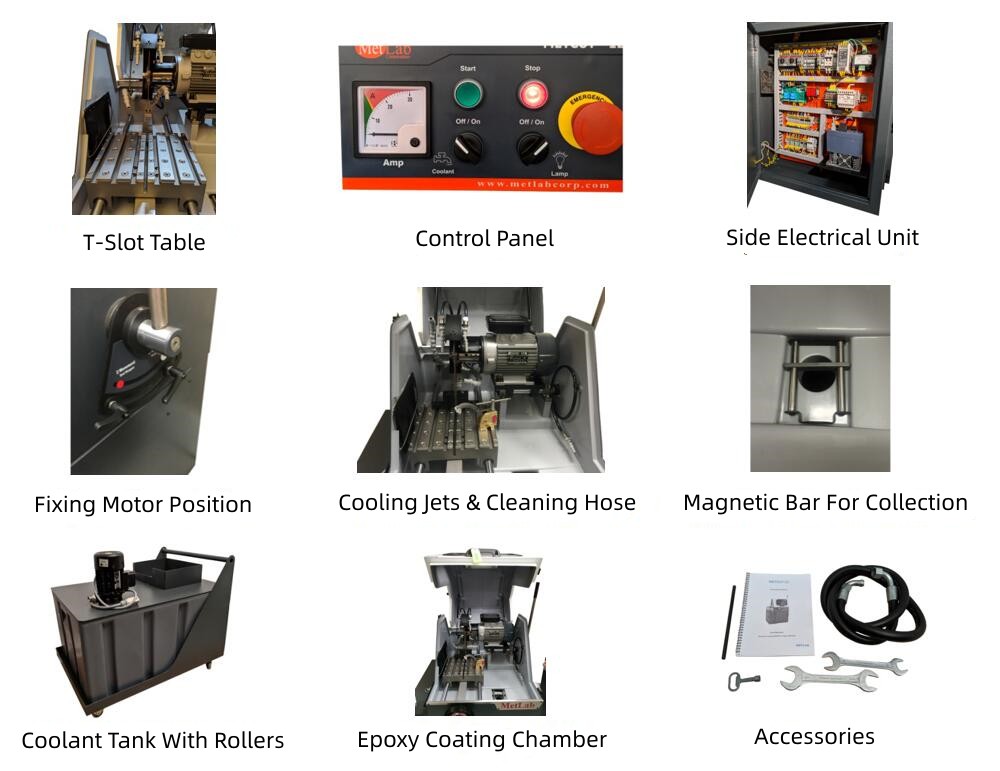

METCUT-12 Floor-Standing Manual Abrasive Cutter Performances
● METCUT-12 is an economical and practical manual abrasive cutter for metallographic needs. Cut-off wheel up to 12in.
● Adjustable positions and orientations of the control panel.
● The combination of cutting chamber, control system and recirculation system is partitioned to maximize each area and make maintenance more convenient.
● Hood safety limit switch ensures safe operation.
● Hood can be opened 90 degrees, convenient for various operations.
● A 60 degree shatter proof viewing window allows a clear view of the cutting chamber.
● LED lamp makes sure clear and bright cutting chamber.
● Extra-largeanti-corrosion twin T-slot table, spacious space.
● Various vises meet the fixation of samples with different shapes.
● Ergonomic cutting handle.
● Electronic motor brake.
● Overload protection.
● Amp meter indicates the cutting force level to prevent overloading and burning the sample.
● Side wall opening for long specimens.
● Four flexible and high flow coolant jets provide optimum cooling.
● Epoxy coated chamber for easy clean-up, corrosion resistant.
● Built-in independent cleaning nozzle for easy wash down.
● Magnetic bar at the drainage outlet for debris collection.

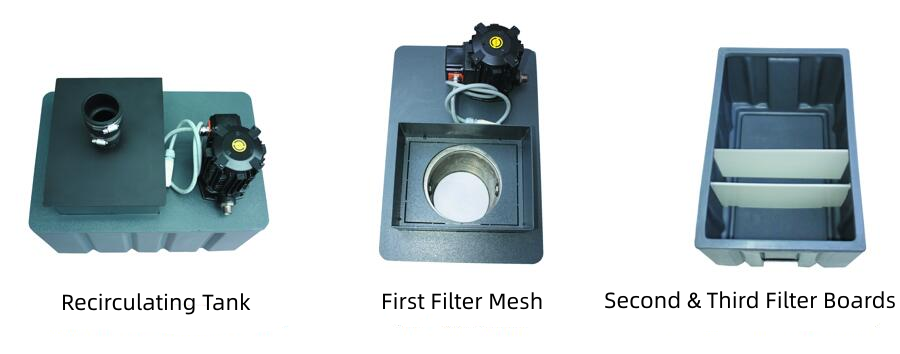

● 100L recirculation coolant tank with rollers, triple filtration system, circulation rate of 63L/min, outstanding cooling capacity.
● Rust proof steel construction to meet a variety of working conditions.

METCUT-12 Floor-Standing Manual Abrasive Cutter Technical Parameters
Main		380V, 3 Phase, 50Hz
Motor Power		5Hp(3.675kW)
Current		17A
Cutting Capacity		110mm
Abrasive Cut-Off Wheel Diameter		Up To 12in(305mm)
Arbor Diameter		1.25in(32mm)
Wheel Speed		2800rpm/min
Operation Modes		Z-axis Manual Chop Cutting, Y-axis Manual Table Feed Cutting
Y-axis Feed Rate And Movement		Feed Rate 5mm, Travel 250mm
T-Slot Size		12mm
T-Slot Table Size (W×D)		302×267mm
Debris Collection Device		Magnetic Bar At The Drainage Outlet For ebris Collection
Coolant Unit		26gal (100L) Recirculating Coolant Tank, With Rollers, Triple Filtration System
Coolant Circulation Rate		63L/min
Coolant Tank Size (W×D×H)		508×781×660mm
Light		LED Lamp
Load Indication		Amp Meter
Size (W×D×H)		1092×876×1422mm, H1824mm (Open)
Weight		329kg

METCUT-12 Floor-Standing Manual Abrasive Cutter Ordering Informations
Part Number		Description
50 03		Floor-Standing Manual Abrasive Cutter METCUT-12
50 02-LV		Quick Acting Vise, Left, Max. Opening 84mm
50 02-RV		Quick Acting Vise, Right, Max. Opening 84mm
15 01		MB 1011 Quick Clamping Device With Clamping Shoe, Max. Clamping Height 90mm
15 02		MBU 1031 Quick Clamping Device With Clamping Shoe, Max. Clamping Height 115mm
50 03-RT		Recirculation Coolant System, 26gal (100L)
