METCUT-5 LOW SPEED PRECISION CUTTER

Brand：	USA/MetLab
Description：	Precision section saw is designed for slicing all type of materials with ease. The slow speed cutter is mostly used for accurate sectioning of very small, hard components for R & D.

Information

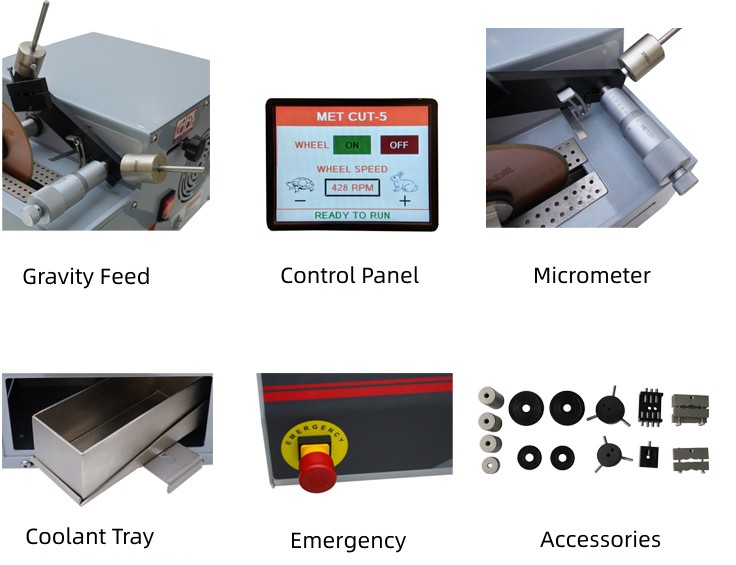

METCUT-5 Low Speed Precision Cutter Performances
● METCUT-5 is an economical low-speed precision cutter. Sectioning blade diameter 3in-5in.
● Low speed makes slicing of all types of materials easier.
● Gravity feed with weights, repeatable.
● Benefits small damage and minimal deformation.
● Simple and convenient operation.
● The emergency switch is eye-catching and should be turned off at any time.
● Advanced color touch screen, clear and friendly.
● Movable clear safety splash guard.
● Movable built-in recirculation coolant tray.
● Automatic cut-off switch offers an unattended cutting.
● Various flanges and specimen vises.
● Manual dressing blade, flexibility and convenience.
● Compact body and small space requireed.
● Aluminum base with rust proof construction, durable.
● Particularly suitable for cutting small, soft, brittle, irregular shaped samples, such as metal materials, composite materials, plastics, electronic components, biological materials, ceramics, cements, rocks and ores, etc. Also commonly used for re-sectioning and thinning sample preparation.
● Platform of table saw for circuit boards and other planar cutting applications (Optional).

METCUT-5 Low Speed Precision Cutter Technical Parameters
Main		220V, 1 Phase, 50Hz
Motor Power		100W
Cutting Capacity		Up to 30mm
Wheel Diameter		3in-5in(76mm-127mm), Cutting On Platform Used 6in(152mm)
Arbor Diameter		0.5in(12.7mm)
Wheel Speed		Variable Speed 60-600rpm
Cut Type		Gravity Feed Chop Cutting
Gravity Feed Weights		0-450g
Micrometer For Cross Feed		0-25mm
Positioning Accuracy		0.01mm
Platform Size (W×D)		395×345mm
Coolant Unit		Movable Built-in Recirculating Coolant Tray
Screen		Color Graphical Touch Screen
Size (W×D×H)		387×333×365mm
Weight		28kg

METCUT-5 Low Speed Precision Cutter Ordering Informations

Part Number		Description
50 01		Low Speed Precision Cutter METCUT-5
GR 0400		Single Saddle Vise
GR 0401		Double Saddle Vise
GR 0403		Irregular Shape Specimen Vise
GR 0431		Teardrop Shape Specimen Vise
GR 0433		Round and Mounted Specimen Vise, Up To 30mm
GR 0434		Round and Mounted Specimen Vise, Up To 40mm
CW-4		Weight Set
CF-138		Flange Set, 1.38in(35mm)
CF-250		Flange Set, 2.5in(64mm)
CS-1		Dressing Stick
50 01-P		Platform for Table Saw
