METCUT-7 PRECISION LOW SPEED SAW PLUS

Brand：	USA/MetLab
Description：	Low speed precision cutter METCUT-7 is applicable to accurate cutting of hard materials, especially to high-value fragile artificial crystals.

Information

METCUT-7 Precision Low Speed Saw Plus Performances
● METCUT-7 is designed for accurate cutting of hard materials, especially to high-value fragile artificial crystals.
● Advanced color touch screen, clear and friendly.
● Gravity feed chop cutting with variable weights. Reproducible cutting.
● Micrometer for cross-feed positioning adjustment 0-25mm.
● Simple and convenient operation.
● Transparent splash guard provides a excellent view.

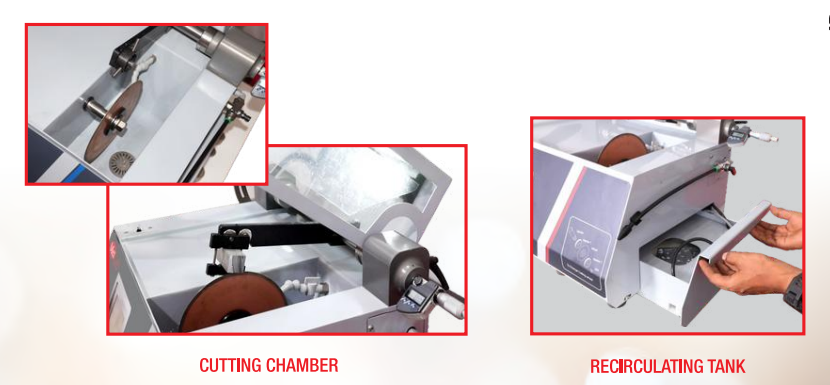

● Easy movable built-in recirculation stainless steel coolant tray.
● The machine with a limit switch can work without a man, and the machine can be power-off automatically after cutting is finished.
● Optional fixtures enable the processed specimen to be sectioned at the optimal angle.
● Benefits small damage and minimal deformation. Reducing follow-up preparation time.
● Hood safety latch, emergency stop for safety purpose.
● Aluminium base and stainless steel construction door.
● Suitable for cutting hard and brittle or ductile materials, such as metal, composite materials, plastics, electronic components, biological materials, ceramics, cements, rocks and ores, etc. Also commonly used for re-sectioning and thinning sample preparation.
● Platform of table saw for circuit boards and other planar cutting applications (Optional).

METCUT-7 Precision Low Speed Saw Plus Technical Parameters
Main Power	220V, 1 Phase, 50Hz
Motor Power	0.5Hp(370W)
Cutting Capacity	Up to 2in(50mm)
Wheel Diameter	4in-7in(102mm-178mm)
Arbor Diameter	0.5in(12.7mm)
Wheel Speed	Variable Speed 60-1000rpm
Cut Operation	Z-axis Gravity Feed Chop Cutting / Manual Chop Cutting
Gravity Feed Weights	0-900g
Micrometer For Cross Feed	0-25mm
Positioning Accuracy	0.01mm
Coolant Tank	Easy Removble Built-in Reciculation Stainless Steel Coolant Tray
Controls	Color Touch Screen
Size (W×D×H)	660×585×460mm
Weight	55kg

METCUT-7 Precision Low Speed Saw Plus Ordering Informations
Part Number	Description
50 10	Low Speed Precision Cutter METCUT-7
GR 0400	Single Saddle Vise
GR 0401	Double Saddle Vise
GR 0403	Irregular Shape Specimen Vise
GR 0430	Teardrop Shape Specimen Vise 18-40mm
GR 0431	Teardrop Shape Specimen Vise 5-20mm
GR 0434	Round and Mounted Specimen Vise, Up To 40mm
CW-5	Weight Set, 50g, 150g, 200g, 2×250g
CF-40	Flange Set, 40mm
CF-63	Flange Set, 63mm
CS-1	Dressing Stick
50 10-P	Platform for Table Saw
