METCUT-10 FLOOR-STANDING MANUAL ABRASIVE CUTTER

Brand：	USA/MetLab
Description：	METCUT-10 series of abrasive cutting machines offer an economical solution to your metallographic sample preparation needs. Floor-standing model can be placed independently along the wall, saving space and affording easy operation.

Information

METCUT-10 Floor-Standing Manual Abrasive Cutter Performances
● METCUT-10 is an economical and practical manual abrasive cutter for metallographic needs. Cut-off wheel 10in.
● Designed simply to easy install, use, maintain and repair.
● Floor-Standing model.
● Hood safety limit switch ensures safe operation.
● Hood can be opened 90 degrees, convenient for various operations.
● A 60 degree shatter proof viewing window allows a clear view of the cutting chamber.
● LED lamp makes sure clear and bright cutting chamber.
● Anti-corrosion T-slot table, spacious space.
● Various vises meet the fixation of samples with different shapes.
● Electronic motor brake.
● Overload protection.
● Amp meter indicates the cutting force level to prevent overloading and burning the sample.
● Side wall opening for long specimens.
● Epoxy coated chamber for easy clean-up, corrosion resistant.
● External cleaning nozzle for easy wash down.

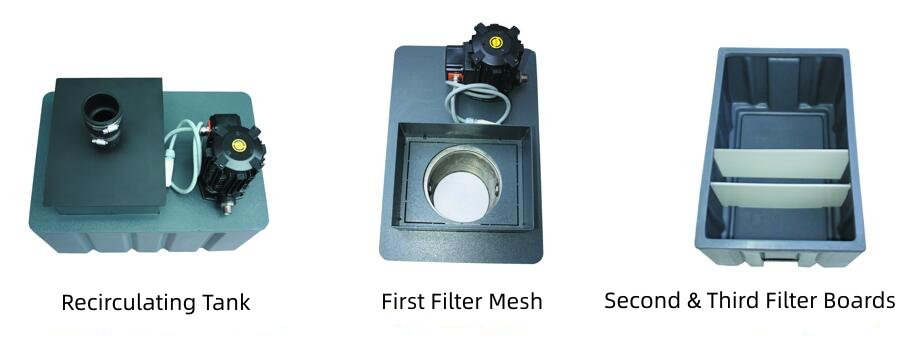

● 50L recirculation coolant tank with rollers, triple filtration system.
● Rust proof steel construction to meet a variety of working conditions.
● A full range of cut-off wheels provide versatility in sectioning to suit a wide variety of materials, is the basic cutter of metallographic lab.

METCUT-10 Floor-Standing Manual Abrasive Cutter Technical Parameters
Main		380V, 3 Phase, 50Hz
Motor Power		3.5Hp (2.57kW)
Current		10A
Cutting Capacity		90mm
Abrasive Cut-Off Wheel Diameter		Up To 10in (254mm)
Arbor Diameter		1.25in (32mm)
Wheel Speed		2865rpm
Operation Modes		Z-axis Manual Chop Cutting, X-axis Movement Table (Optional)
T-Slot Size		12mm
T-Slot Table Size (W×D)		245×200mm
Coolant Unit		13gal (50L) Recirculating Coolant Tank, With Rollers, Triple Filtration System
Coolant Circulation Rate		63L/min
Coolant Tank Size (W×D×H)		360×530×620mm
Light		LED Lamp
Load Indication		Amp Meter
Size (W×D×H)		559×830×1320mm, H1600mm Open
Weight		177kg

METCUT-10 Floor-Standing Manual Abrasive Cutter Ordering Informations
Part Number		Description
50 02		Floor-Standing Manual Abrasive Cutter METCUT-10
50 02-LV		Quick Acting Vise, Left, Max. Opening 84mm
50 02-RV		Quick Acting Vise, Right, Max. Opening 84mm
15 01		MB 1011 Quick Clamping Device With Clamping Shoe, Max. Clamping Height 90mm
50 02-RT		Recirculation Coolant System, 13gal (50L)

METCUT-10、METCUT-12、METCUT-12A这三个的循环水箱都是一样的，都可以用这张图.png METCUT-10和METCUT-10A.jpg
